Solar controller has specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing.

Features:

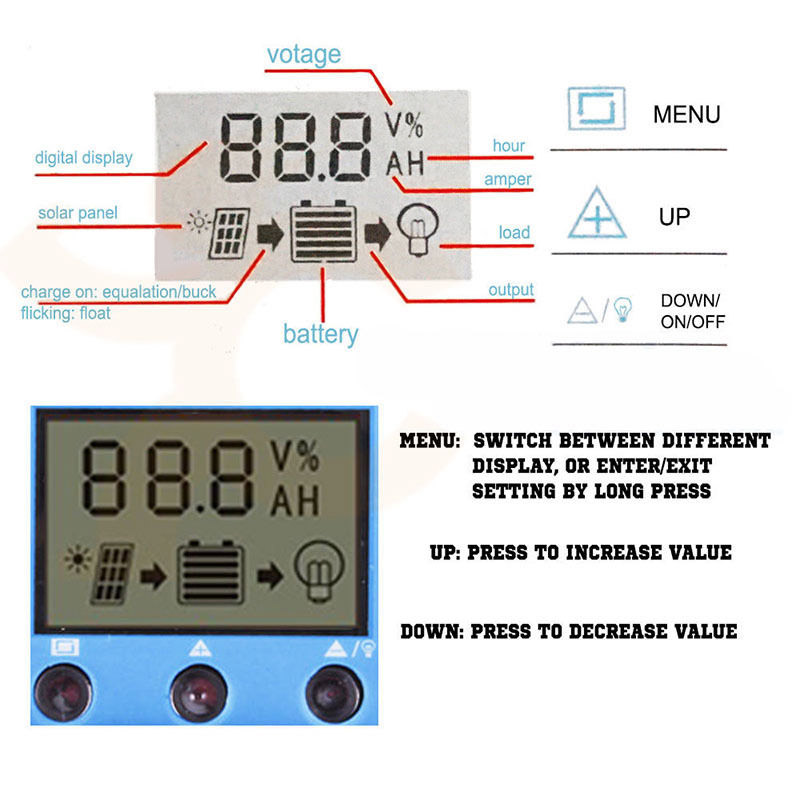

Build-in industrial micro controller LCD display, all adjustable parameter PWM battery charging
Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection
Dual mosfet reverse current protection, low heat production
All necessary protections equipped
Adjustable controlling parameter of the system
Comes with double USB posts

Specifications:
Batt Voltage: 12V/24V auto
Charge Current: 20A Discharge
Current: 20A
Working Temperature: -35°C to +60°C
Application: Home, Industrial, Commercial
Self consume: ≤10mA
Float Charge: 13V (default, adjustable)
Discharge stop: 10.7V (default, adjustable)
Discharge reconnect: 12.6V(default, adjustable)

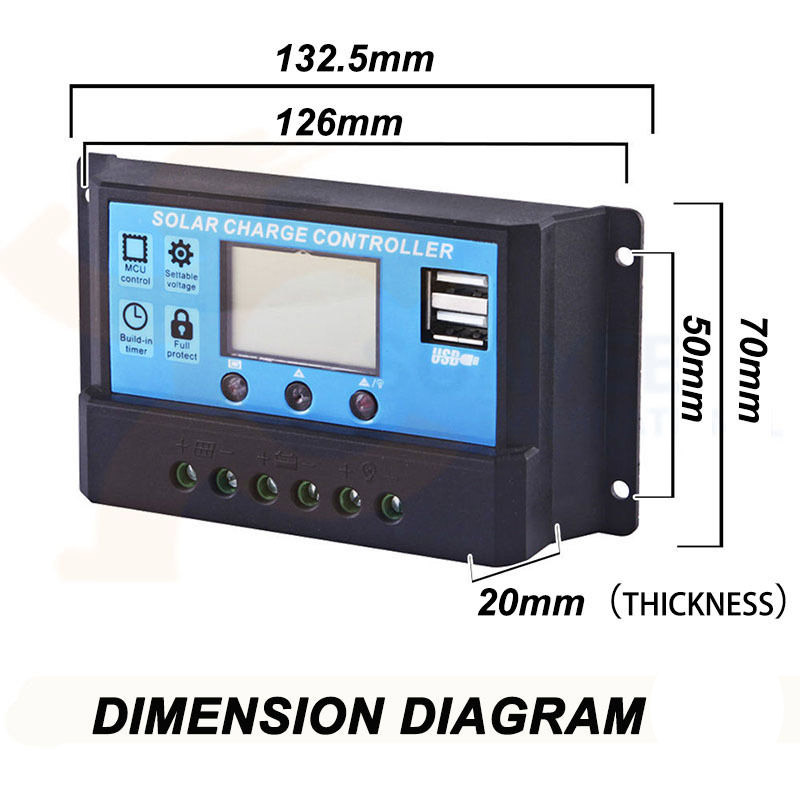

Size: 132.5 x 70 x 20mm
Weight: 150g

Package Includes:
1 x Solar Charge Controller
1 x User Manual

Availability: Please allow up to 2-4 weeks for delivery. No pickup
