Description
Features:
100% brand new and high quality.
Build-in industrial micro controller.

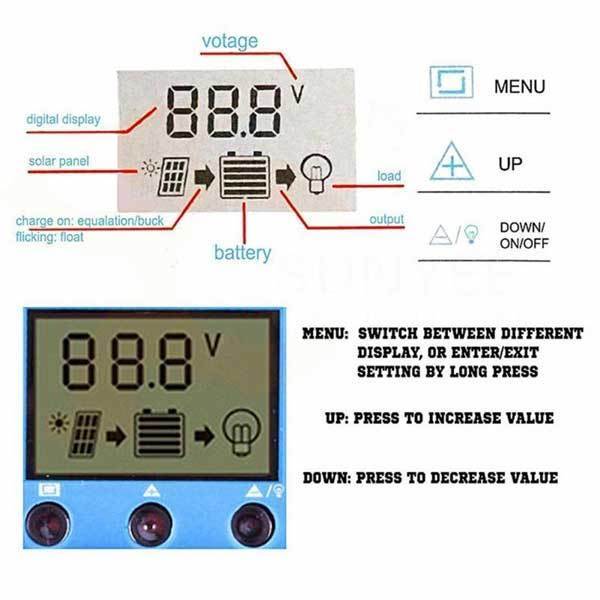

One-key setting,digital display,auto memory function.
Fully 4-stage PWM charge management.
Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections
Dual mosfet reverse current protections, low heat productions.
With double USB ports charge
Free One pair Anderson Style Plug included
The Regulator is only suitable for lead acid batteries:OPEN, AGM, GEL
It is not suited for nickel metal hydride, lithium ions or other batteries

Specifications:
Rated Voltage: 12V 24V Auto
Application: Solar System Controller
Rated Current: 30A
Max. PV Voltage: 50V
Max. PV Input Power: 30A: 390W (12V) 780W (24V)

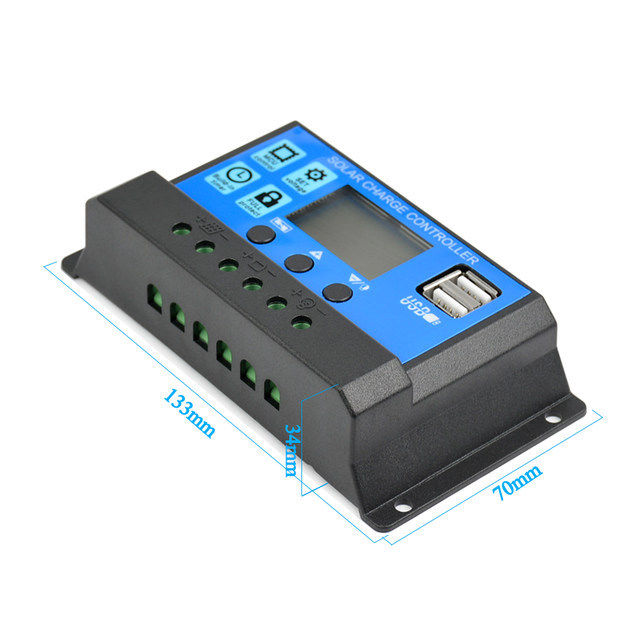

Size: 133 x 70 x 34mm
Safety Instructions:
Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
The battery cable should be as short as possible to minimize loss.
The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL
It is not suited for nickel metal hydride, lithium ions or other batteries.
The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

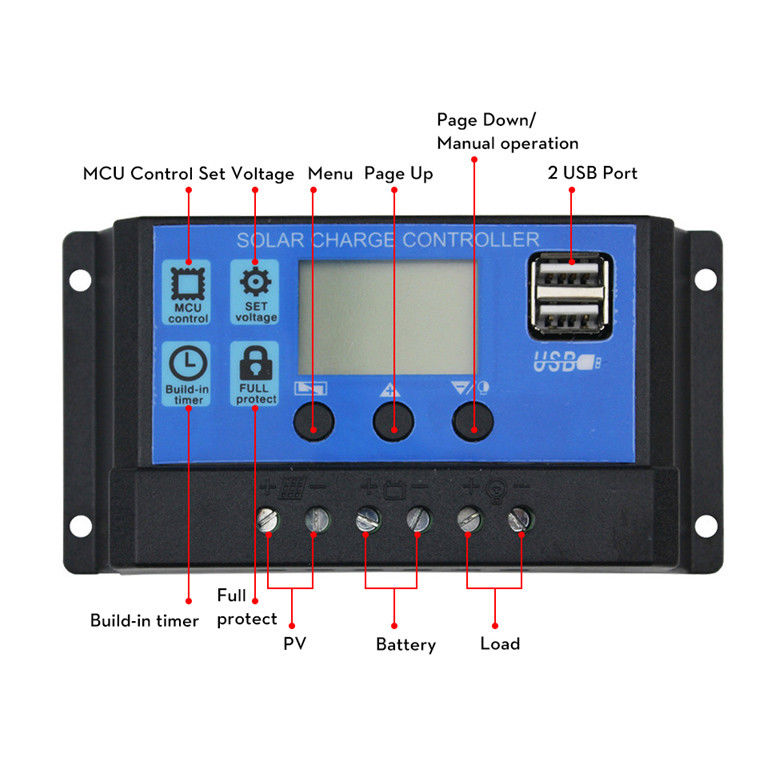

System Connection:
Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.
Connect the photovoltaic module to the regulator - plus and minus.
Connect the consumer to the charge regulator - plus and minus.

Package Includes:
1 x 30A Solar Charge Controller
1 x User Manual
2 x FREE Anderson Plugs

Warranty:
3 months

Availability:
Please allow up to 1-2 weeks for delivery
No pickup

12V/24V 30A Solar Panel Battery Regulator Charge Controller

$11.99
Includig GST + Shipping fee?
