Description

◎ Reduce Bore: 1/2"=15mm Bore Size When Power On(Straightway) And 7mm When Power Off;

◎ "L" Flow When Power Off And Go Straightway When Power In;

◎ Will Be Taking 0.02~0.04Amps When Keeping At Open Or Closed Status;

◎ Standard BSPP/BSPT Female Thread(Not a NPT);

◎ Stainless Steel 304 Valve Body;

◎ ≤5sec Quick Action For Closed or Open Time.

Description:

◎ Maximum Working Pressure: 145PSI

◎ Medium: Water, Gas, Oil;

◎ Voltage: 12VDC (±10%)

◎ Working Current: Max 0.5Amps When Open,0.02~0.04Amps Keeping At Place;

◎ Cable Length: 0.5 Meters

◎ Medium Temperature:-5° ~ 100° Celsius ;

◎ Manual Override: No

◎ Indicator: No

◎ Open and Closed Time:≤5sec

Shipping

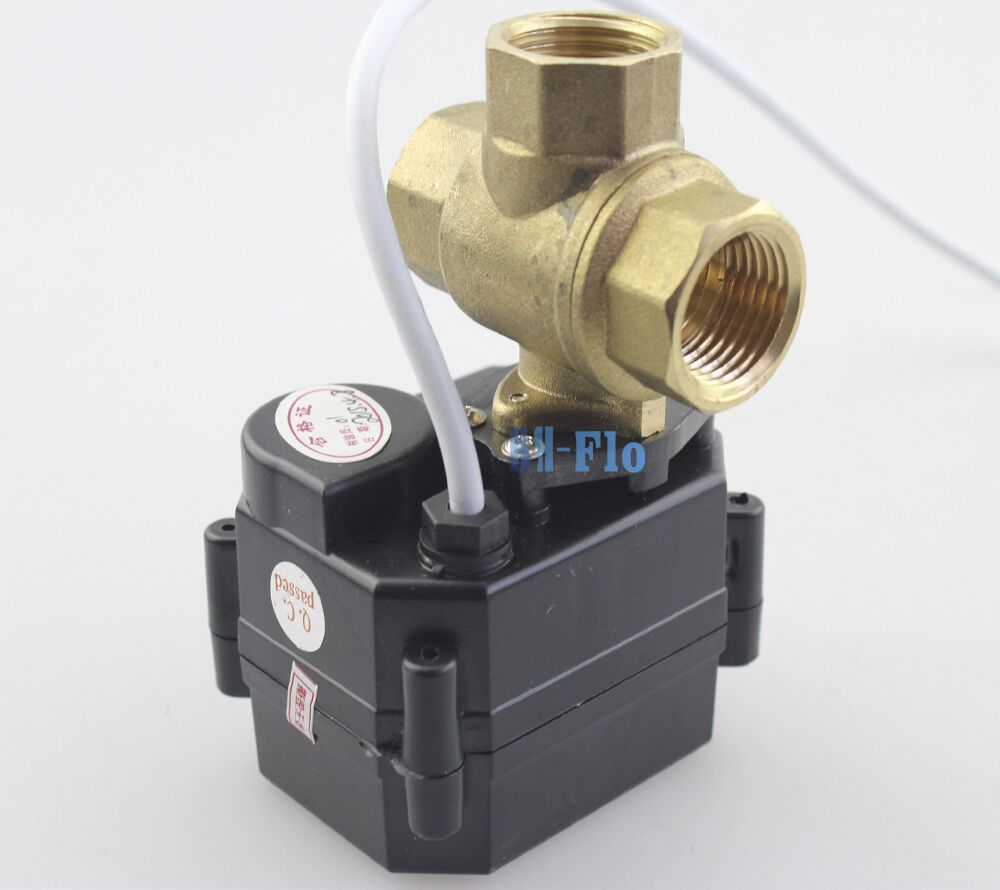

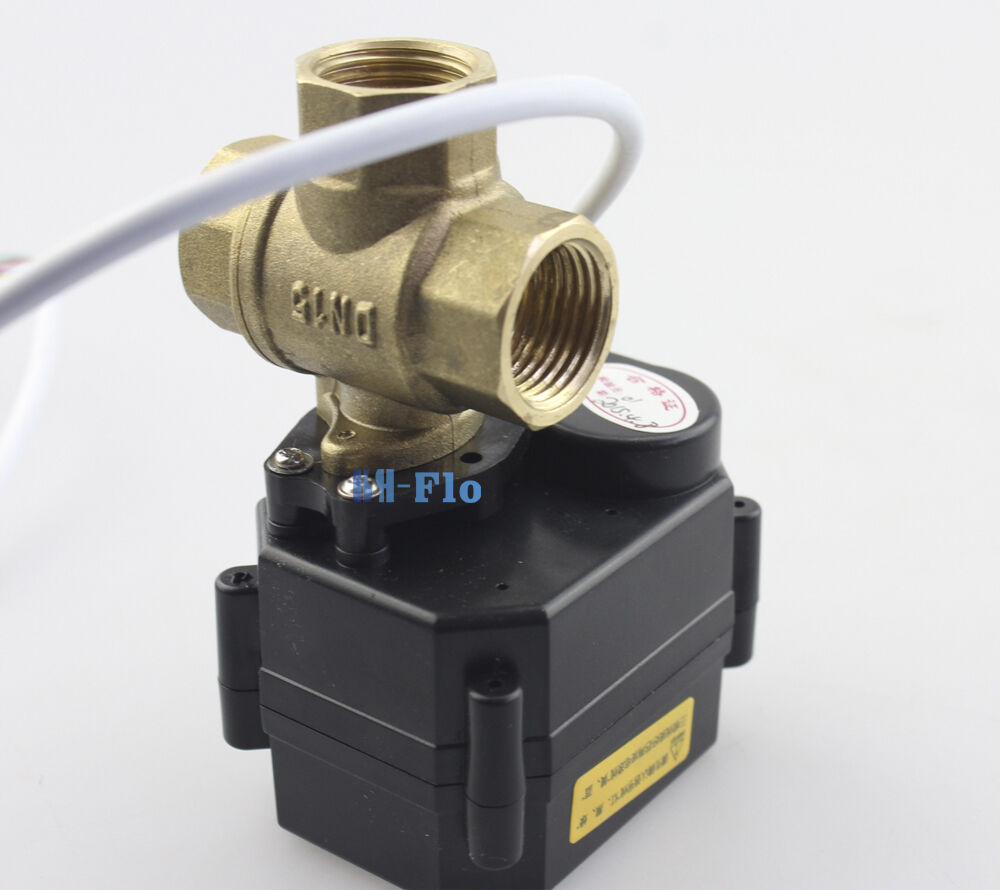

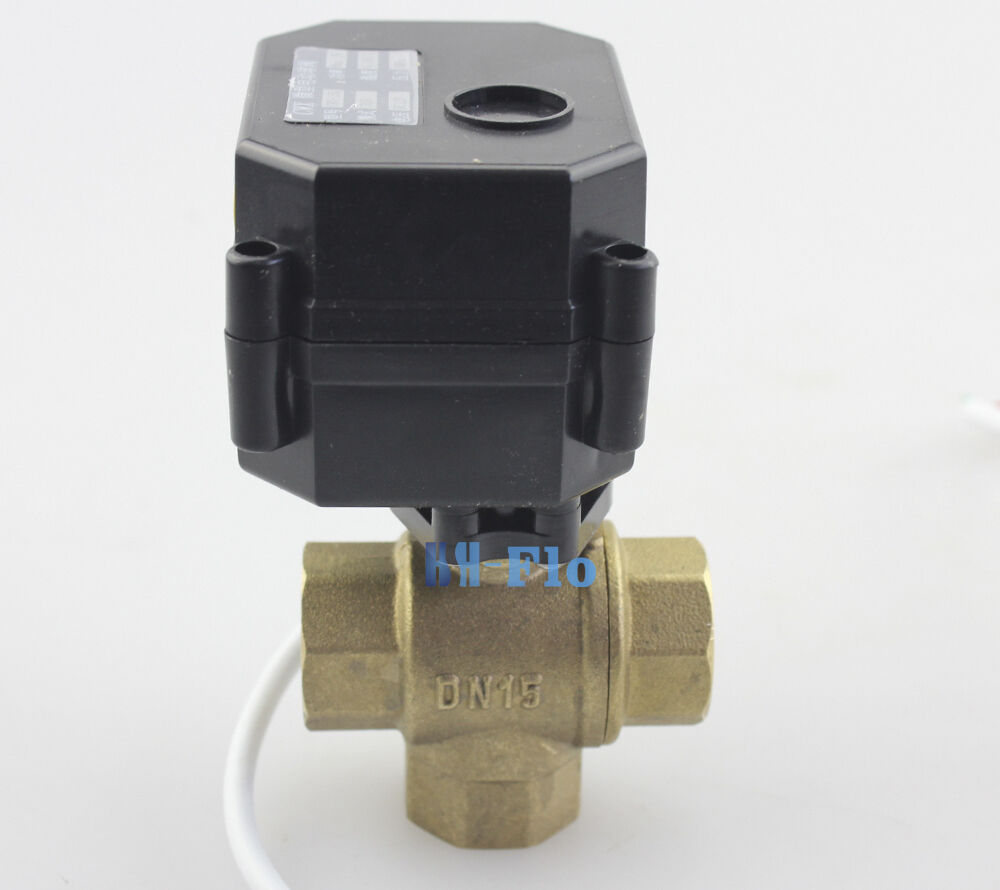

1/2inch DN15 DC12V Motorized Ball Valve, 3 Way T Type Electrical Ball Valve

$27.99
