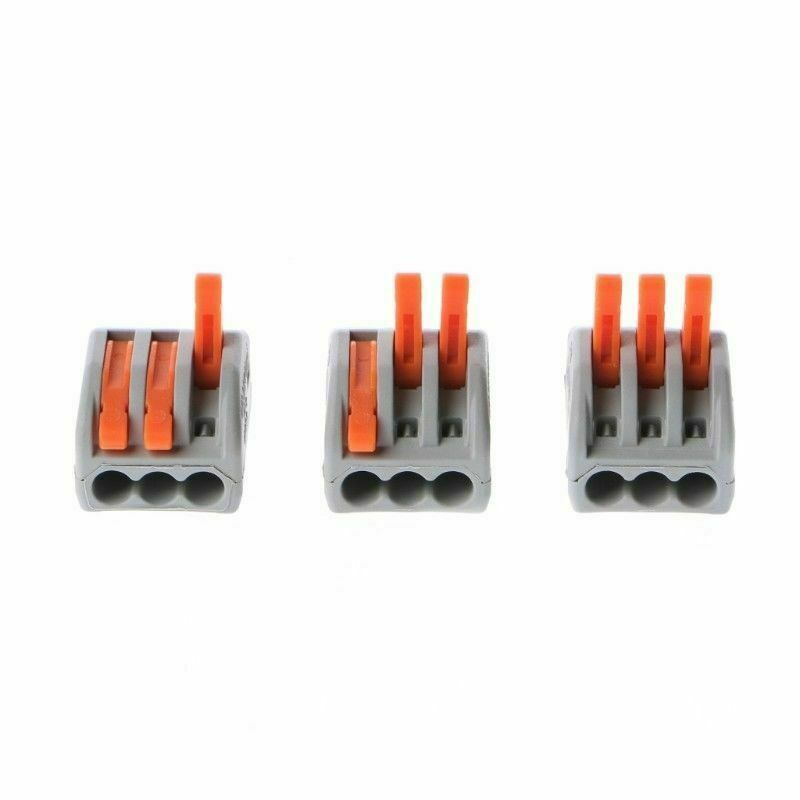

3 Way Electrical wire spring lever connectors

Clear visible indication and a simple colour coded scheme make inspection and identification fool proof. There is an electrical test point in the base of the housing for checking the on/off supply.

Specification

Color: Grey

Size:

3 Way: 20 x 16 x 19 mm / 0.78" x 0.63" x 0.74" (LxWxH)

Max. Voltage: EN 400 V

Current Intensity: EN 32 A

Max. Isolation: 4 kV

Max. Continuous Service Temperature: 85°C

Strip Length: 9-10mm

Features

Security - no loose wires, tape embrittlement danger, safe and transparent visible;

Convenience - a test hole, measure the voltage without removing tape;

Quick - direct plug, plug the wrong can be pulled out, followed again;

Reliable - Each contact shrapnel independent, fit different wire diameter, safety shorting.

How to use:

Simply strip wire length at 10mm and insert into the connector and secure the lever then release the lever to remove the cable and re-use the connector.

Cables must be the same polarity i.e all lives or all neutrals etc.
