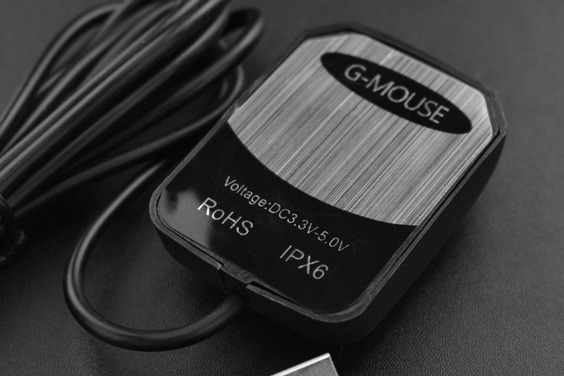

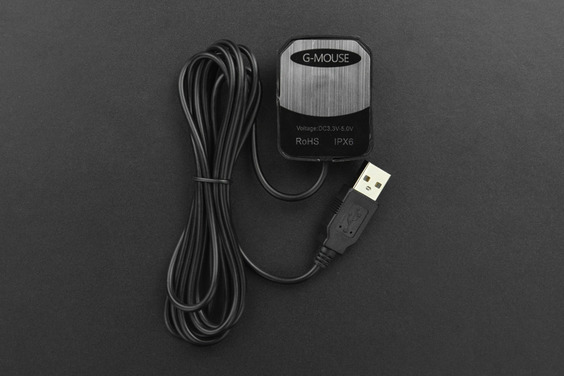

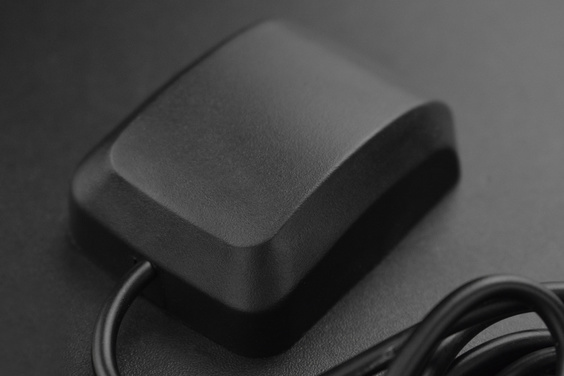

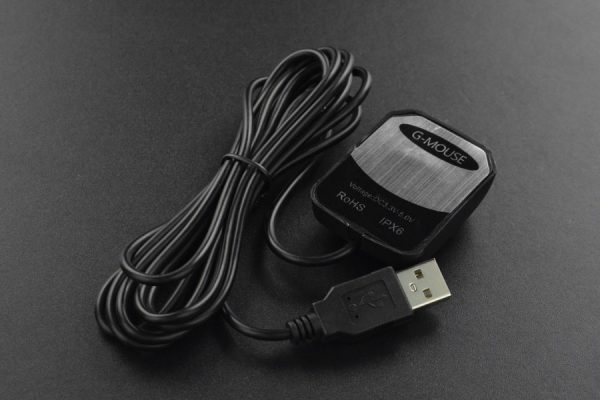

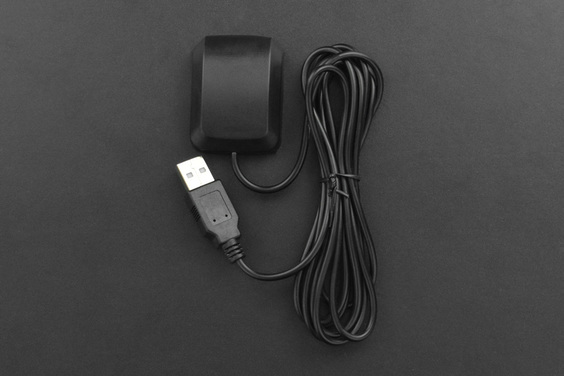

Ublox USB GPS Receiver is a GPS receiver with low power consumption and high sensitivity that uses Ublox positioning chip and can receive satellite signals with 56 channels. The built-in satellite receiving antenna has the advantages of stronger signal and faster positioning compared with the traditional receiver. The product adopts high-precision positioning chip parts and industrial-grade manufacturing process, so it can meet the needs of industrial-grade positioning and personal use. The built-in battery is used to store satellite data, such as satellite signal status, last position and time, which is convenient and fast to increase the positioning speed when the next power-on is turned on. The USB interface can be used on Raspberry Pi, NVIDIA, LP. The USB cable is 2 meters long, and the bottom of the sensor is magnetically attached to metal objects, which is more conducive to sensor installation. It can be applied to vehicle navigation, handheld positioning, wearable devices and other fields.

Technical Specifications

Frequency: L1, 1575.42MHz/L2, 1561.10MHZ/L3, 1602.00MHZ

Baud rate: 4800, 9600, 19200, 38400, 57600, 115200bps

Receive channel: 56CH

Sensitivity: Tracking: -162dBm Capture: -160dBm Cold Start -148dBm

Cold Start: Average 29S

Warm Start: Average 3S

Warm Start: Average 1S

Accuracy: horizontal position accuracy <2.5M, SBAS <2.0M, timing accuracy: 30ns

Update frequency: 1HZ

Dimensions: 38×49×16mm USB cable length 2 meters

Working temperature: -40℃~85℃
