Description

Product Specifications:

-Insulation Material: PC/PA, black

-Contact Material: Copper Sliver plated

-Ambient temperature: -40 ℃～ + 105 ℃

-Withstand voltage: DC1000V

-Flame retardant rating: UL94-VO

-Rated Current: 30A

-Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)

-Pin dimension: 4.0 mm dia.

-Contact resistance: <=0.5mΩ

-Insulation resistance: ＞ 500M

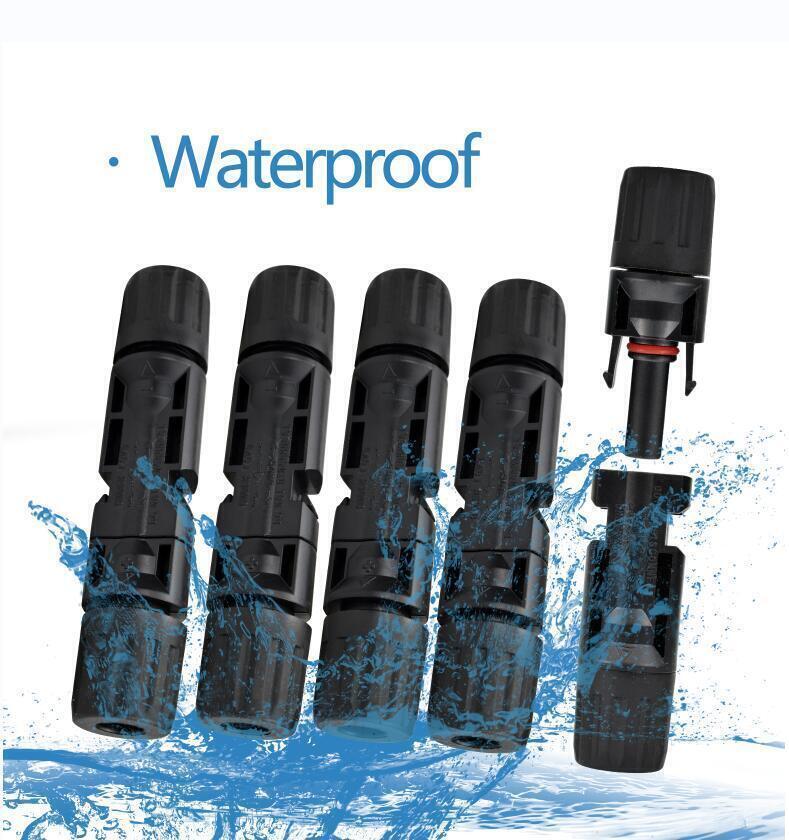

-Waterproof degree: IP67

-Flame class: UL94-VO

-Safety Class: Ⅱ

-Withdrawal force: ≥50N

-Insertion force: ≤50N

-Insulation material: PPO + PA

-Connecting system: crimping connection

-Applicable single-core cable section: 1.5mm2--6mm2

-Cable outer diameter range: Φ5mm ～Φ 7mm

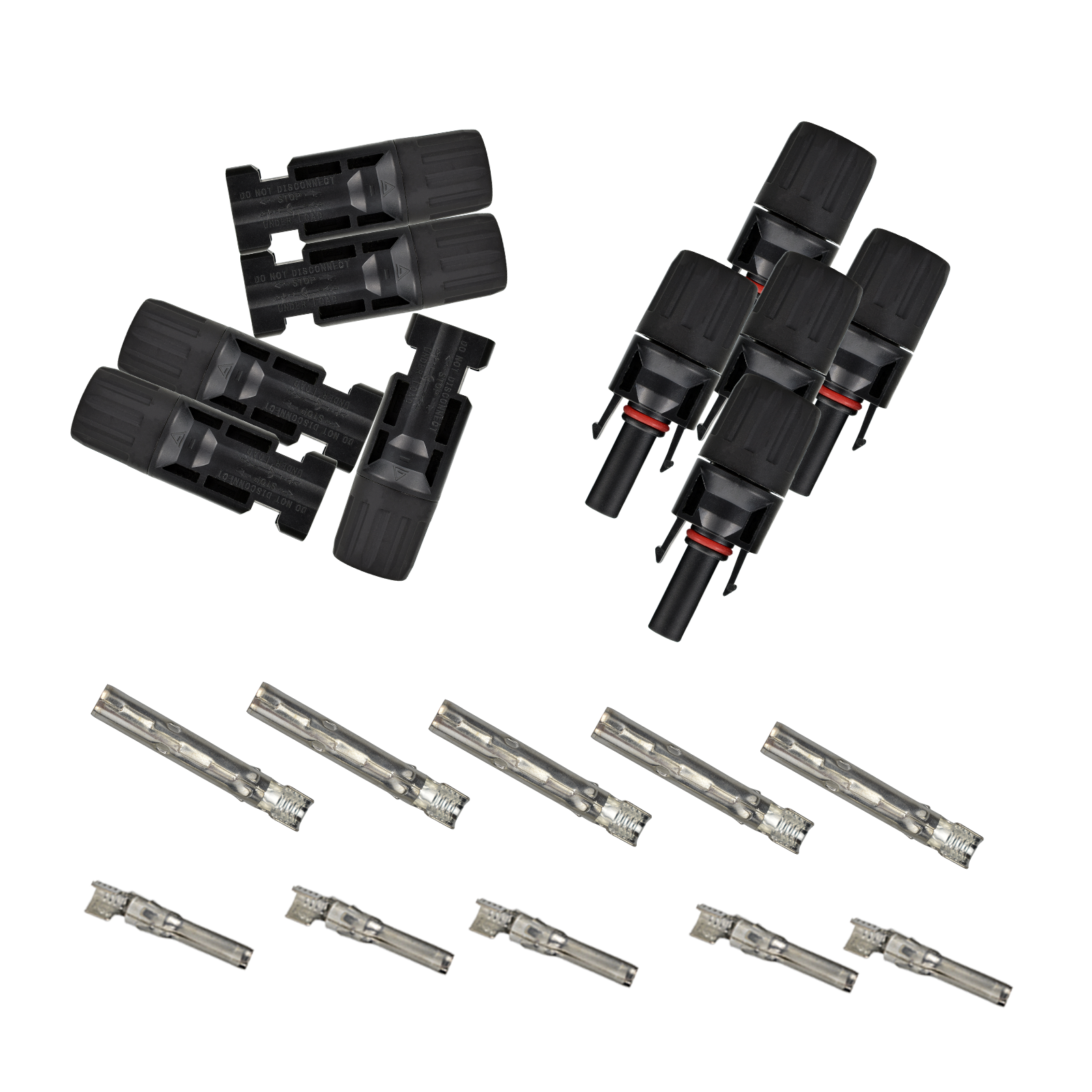

Package Include:

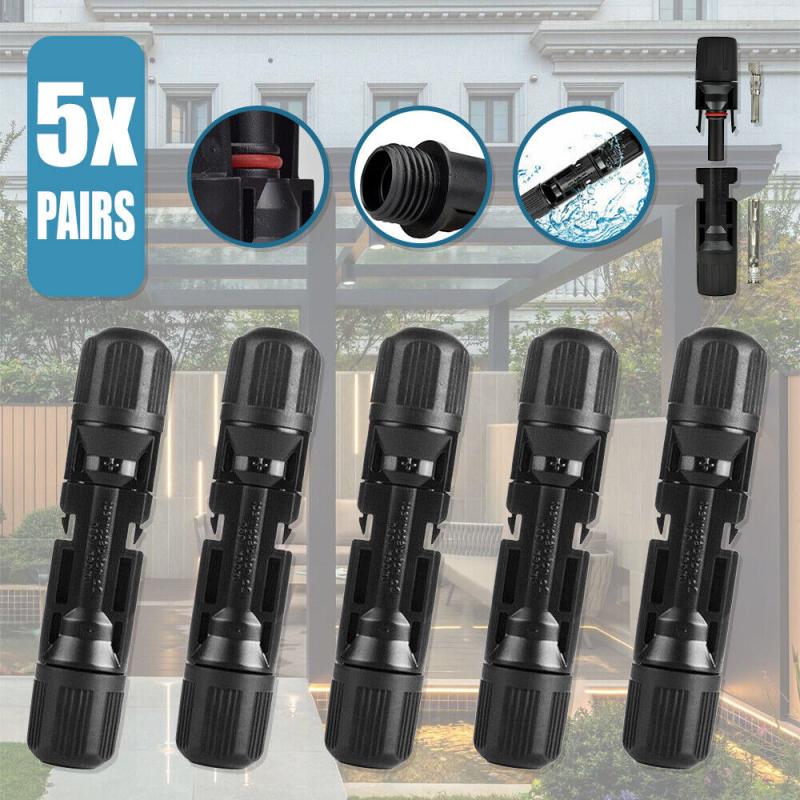

5 x male solar panel cable connectors

5 x female solar panel cable connectors

Shipping

Free Shipping 5 Pairs For Solar Panel Connectors IP67 30A Line Plug Socket Male & Female

$8.99
