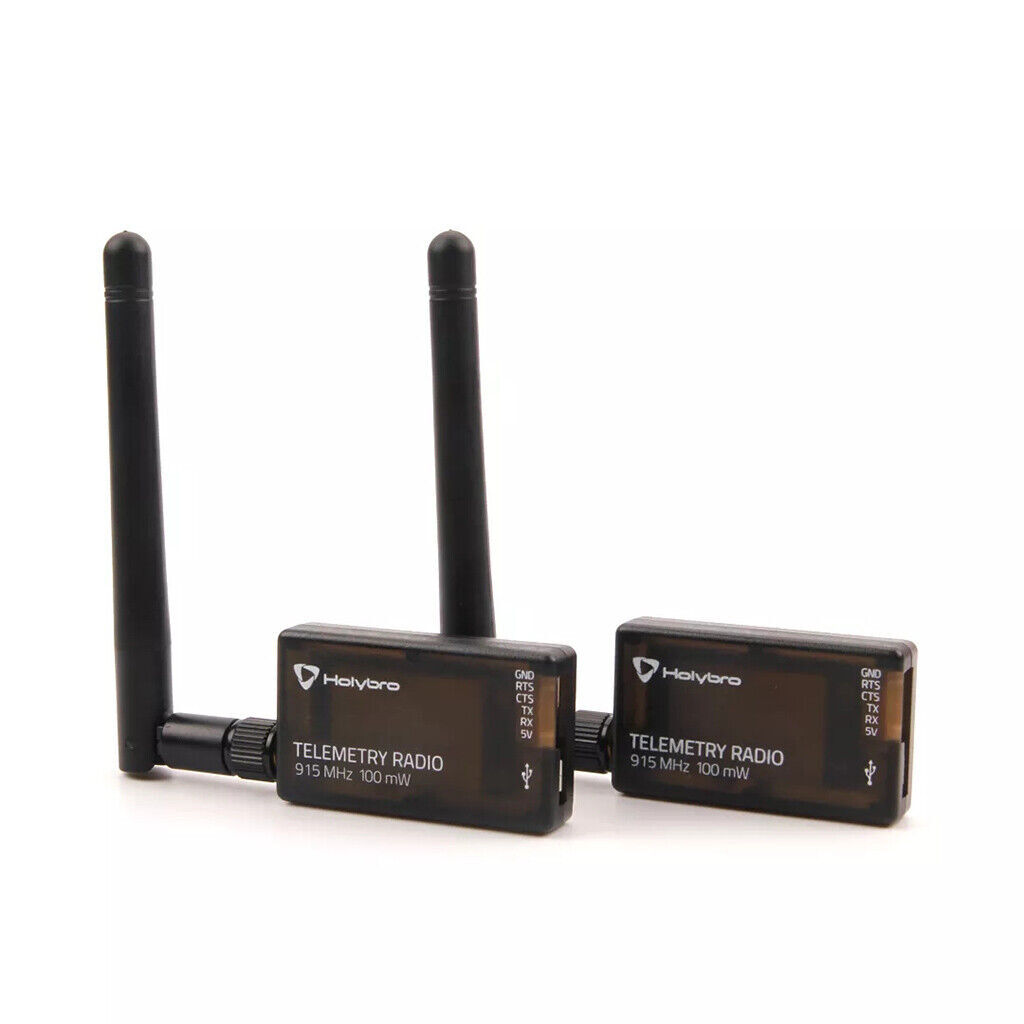

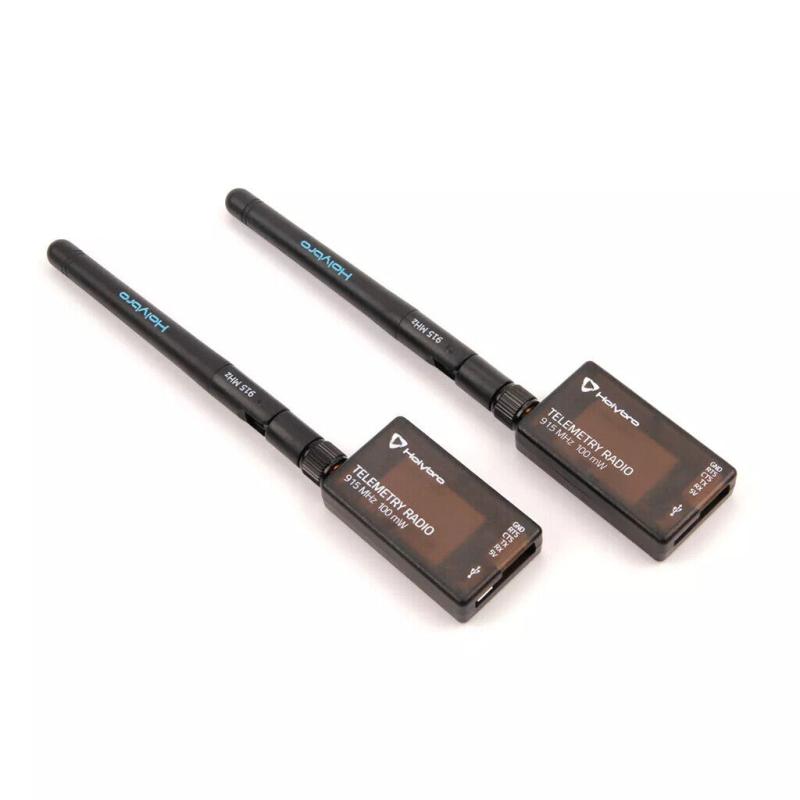

Holybro SiK Telemetry Radio V3 100mW 915MHz Open-source SiK firmware Plug-n-play For Pixhawk Standard Flight Controllers Product Details:Overview:This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allowsranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of apatch antenna on the ground).This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup atelemetry connection between your Autopilot and a ground station. It uses open source firmware which has beenspecially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot,QGroundControl, PX4 Autopilot.

Features:Open-source SIK firmwarePlug-n-play for Pixhawk Standard Flight ControllersEasiest way to connect your Autopilot and Ground StationInterchangeable air and ground radioMicro-USB port (Type-C Adapter Cable Included)6-position JST-GH connectorSpecification100 mW maximum output power (adjustable) -117 dBm receive sensitivityRP-SMA connector2-way full-duplex communication through adaptive TDM UART interfaceTransparent serial linkMAVLink protocol framingFrequency Hopping Spread Spectrum (FHSS) Configurable duty cycleError correction corrects up to 25% of bit errors Open-source SIK firmwareConfigurable through Mission Planner & APM PlannerFT230X / FT231X is a USB to BASIC UART ICDimensions28 x 53 x 10.7mm (without antenna)SiK Telemetry Radio V3 -915MHz(1pc):22.7gElectrical DataSupply voltage: 5V DC (from USB or JST-GH)Transmit current: 100 mA at 20dBmReceive current: 25 mASerial interface: 3.3 V UARTFCC IDENTIFIER: 2AP22-HT03-V3

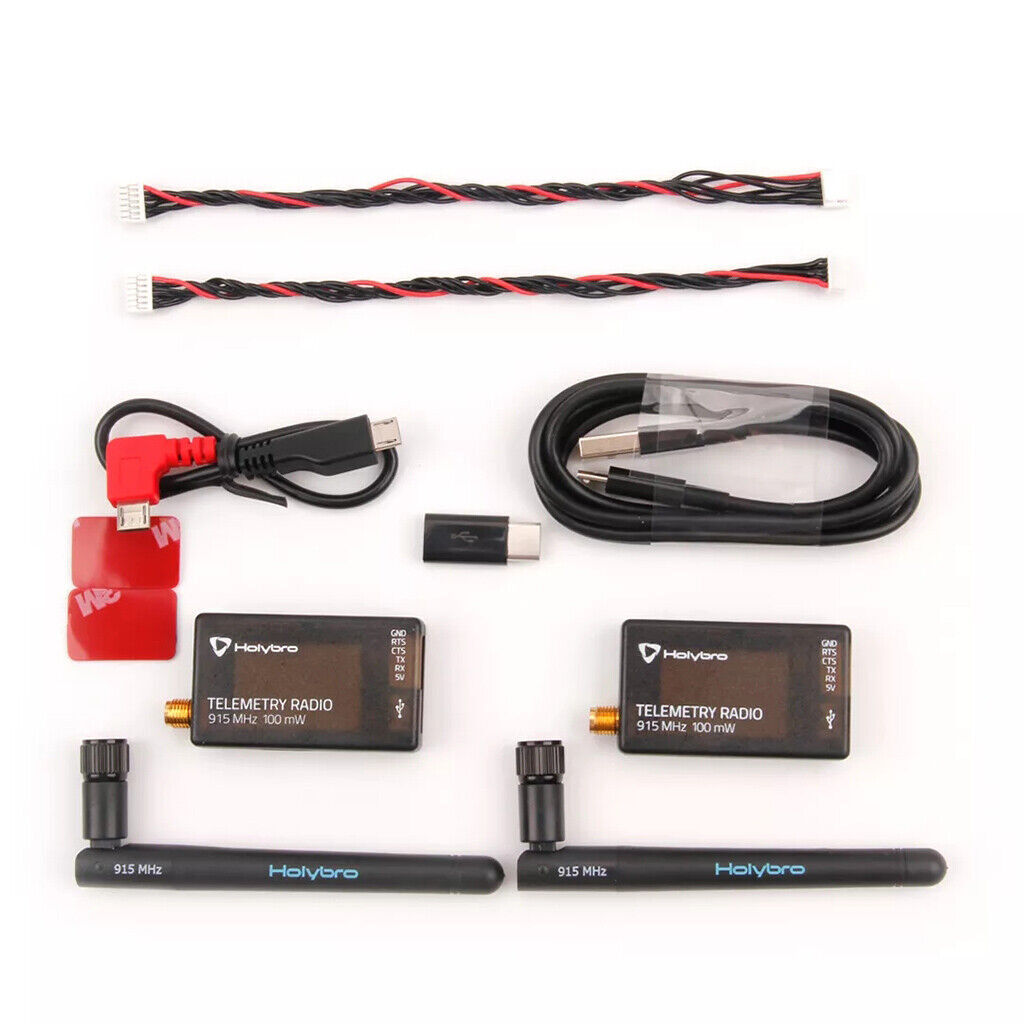

Package Included:
Radio modules with antennas *2
Micro-USB to USB-A cable *1
Micro-USB to Micro-USB OTG adapter cable *1
Micro USB to Type C AdapterJST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
