Installation Method

(1): Tie Fixing

The AL300 flexible light board can be installed by tying it to the power supply line of the graphics card and motherboard.

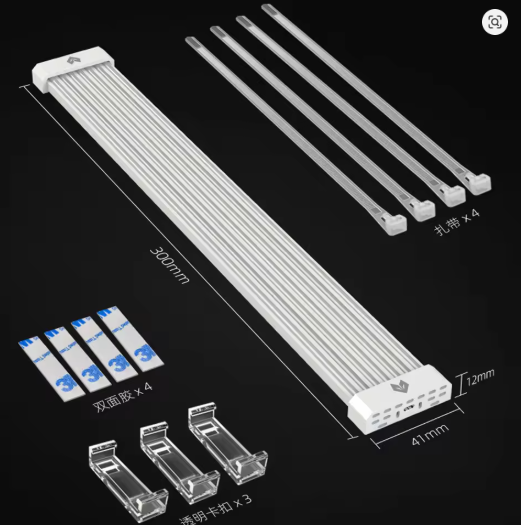

Installation Method: A. Insert the cable ties from the holes on the back of the clear buckle. Pass the cable ties through the other holes, secure the cable ties to the graphics card and motherboard's power supply cables, then tighten and cut the cable ties.

(2): Double-sided tape fixing AL300 flexible light board can be used by sticking it on the free plane of the chassis by fixing it with double-sided tape.

Installation Method: A. Paste double-sided tape on the clear buckle. B. Peel off the protective film on the surface of the double-sided tape, and then stick the AL300 soft light board in the appropriate position on the chassis to fix it.

Features:

1. High-quality high-density lamp beads: The lamp board is made of 44 high-quality high-brightness lamp beads in double rows, making the lamp board bright and rich in color, pleasing to the eye. The lighting effect does not reveal lamp beads, and there are no dark spots in high brightness.

2. Bendable, flexible, cool luminous stripe with a sense of technology: high-quality silicone material, strong lighting guide, soft texture, flexible and durable, 360° bendable, meet DIY modeling needs. Nice multi-stripe luminous design, the light is soft, whole and translucent, multi-track flowing light effect, showing a sense of technology.

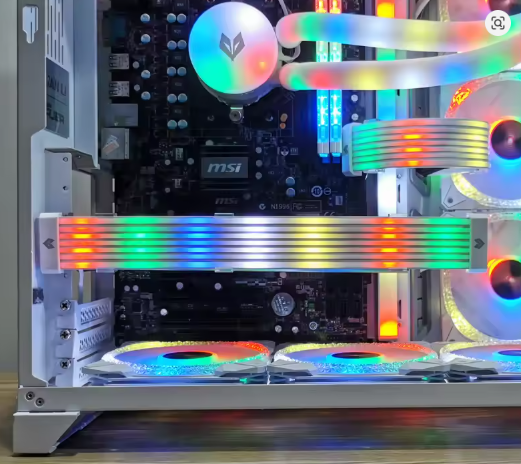

3. Free DIY for multiple application scenarios: AL300 flexible light board can be used to decorate 24Pin motherboard power supply lines, 8pin graphic power supply lines and other hardware equipment power supply lines, and can be straightened into light boards. It can also be used as a chassis light bar.

4. 5V ARGB Aura Synchronization: Support second-generation addressable ARGB interface on motherboards, such as ASUS/MSI/Gigabyte/ASRock, etc., control lighting through software, and programmatically customize 168,000 colors.

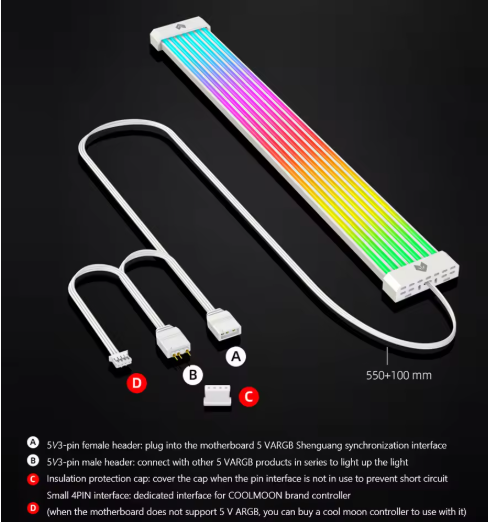

5. Multi-interface expansion is more convenient.5V 3PIN*2 4PIN, the elongated wire doesn't need to worry more about wiring, simple white is the current mainstream color, and the multi-interface makes the connection and installation and expansion more convenient. It greatly improves product compatibility. Extended wire to support the backline. It comes with instructions and installation accessories that can be secured with cable ties or double-sided tape, making it easier to install and use. Built-in binding tape without extension cable is widely used for direct connection to graphics card cable/motherboard cable.
